Product Overview
Yuanding's Electric Ob Chav Txheej Txheej Tshuab yog lub servo-tsav palletizing system rau ob- txheej khoom thauj khoom. Nws yog siv nyob rau hauv cov ntaub ntawv packing, bagged - cov ntaub ntawv ntau lawm thiab tivthaiv tuav qhov twg lub load drawing qhia ib tug qis thiab ib tug Upper txheej khoom.
Cov yam ntxwv tseem ceeb
Kaw -Loop Servo Positioning
Servo motors thiab pob -ntsia hlau kis tau tus mob tswj cov tuav axes. Thaum lub sij hawm rov qab loaded strokes, kaw -loop tawm tswv yim tswj tuaj txog ntawm txoj hauj lwm hais kom ua, ua kom txhua qhov chaw xa mus rau lub programmed pallet coordinates.
Programmed Upper - Txheej Offset
Qhov kev pab cuam stacking teeb tsa cov txheej txheem sab saud thiab kev taw qhia txog qhov qis dua. Rau tus qauv staggered, qhov thib ob qhov kev tso kawm ua raws li cov txheeb ze txoj haujlwm, tswj kev sib raug zoo ntawm cov khaubncaws sab nraud povtseg ntawm cov pallets ua tiav.
Sib cais tswj ntawm Gripping Functions
Clamping, gripping thiab suction mechanisms yog tswj nws tus kheej. Thaum ib txoj hauj lwm hloov mus rau ib lub pob nrog cov kev xav tau sib txawv, cov haujlwm xaiv tau muab cov kev tuav pov hwm uas xav tau los ntawm kev nqa, mus ncig thiab tso tawm.
Tshem tawm tom qab ob txheej ua tiav
Lub pallet conveyor tshem tawm cov khoom tiav tom qab ob qho kev tso kawm tiav. Thaum lub sij hawm hloov mus rau tom ntej pallet, lub conveyor nqa lub hauv paus loaded rau lub outfeed, freeing lub stacking txoj hauj lwm rau lub voj voog tom ntej.

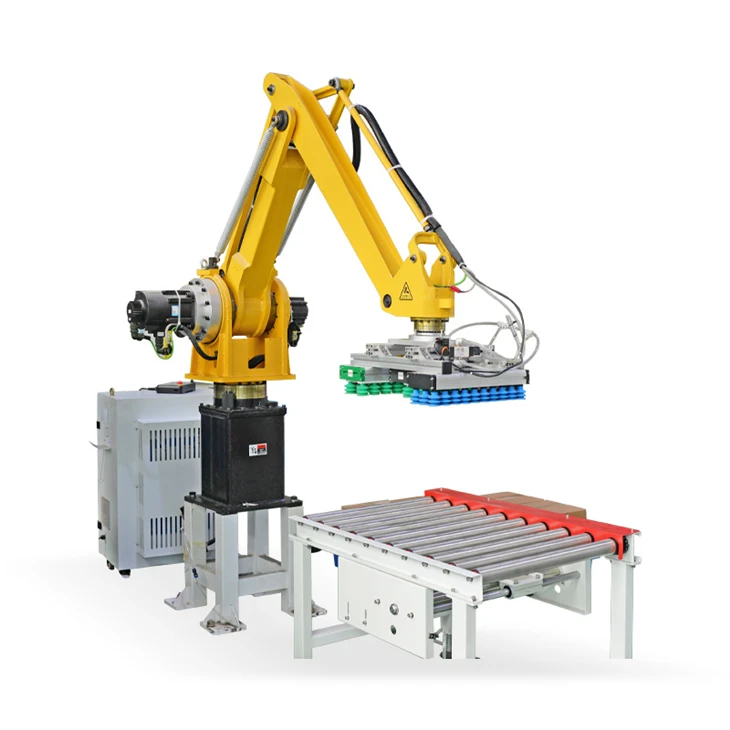

Custom Electric Ob Chav Txheej Stacking Tshuab
Peb tsim lub tshuab los ntawm cov khoom siv qhov ntev, qhov hnyav, ntim cov cwj pwm thiab cov qauv cog yuav tsum tau ua. Kev npaj mus txawv tebchaws thiab tuav cov cuab yeej yog tsim los rau kev pom zoo, nrog cov khoom siv hluav taws xob thiab kev tswj xyuas kev sib koom ua ke nyob ib puag ncig cov cuab yeej tsim khoom.
Customizable yam khoom
• Khoom-hu rau cov cuab yeej geometry
• Conveyor ntev thiab ua haujlwm siab
• Pallet lossis lub hauv paus - qhov ntev ntawm lub rooj tsavxwm
• Ua tiav ntau kawg - lub hnab ntawv thauj khoom
• Hloov cov kev taw qhia
• Tshem tawm layout
• Cov khoom siv hluav taws xob thiab HMI lus
• Tshuab xim thiab OEM cim
Ntsiab Specifications
|
Parameter |
Paub meej |
|
Cov ntsiab lus tseem ceeb |
Flattening conveyor, qeeb- nres conveyor, indexing conveyor, pallet dispenser, pallet conveyor, pawg tshuab, hnab pusher, stacking unit |
|
Tsav hom |
Electric (servo lub cev muaj zog) |
|
Txheej |
Ob chav txheej (automatic) |
|
End Effector Functions |
Clamping, gripping, suction, tuav, stacking |
|
Cov ntaub ntawv siv tau |
Thawv, hnab, thoob, ntawv, pallets, ntawv pads |
|
Siv Tau Kev Lag Luam |
Petrochemical, zaub mov, pub, khoom siv hauv tsev, hnub ci, tsheb, steel, warehouses |
|
Custom Options |
Conveyor length, tooling setup, txheej configuration, khoom xim |
|
Yam tsawg kawg nkaus |
1 qob |
|
Cov nqe lus them nqi |
30% ua ntej, 70% tshuav nyiaj li cas |
|
Cov ntsiab lus ua lag luam |
EXW, FOB, DDP |
|
Warranty |
1 xyoo |
Kev Tswj Xyuas Zoo
Cov khoom tuaj thiab hauv - cov txheej txheem tshuaj xyuas npog cov khoom siv tshuab, cov khoom tsim thiab cov khoom sib dhos. Kev tshuaj xyuas qhov kawg ntawm cov tshuab siv tau hais txog kev pom zoo lub tshuab kev npaj thiab nws cov kev ua haujlwm clearances.
Cov txheej txheem kev lees paub ntawm kev thauj khoom suav nrog kev txav siab tshaj qhov kev thauj khoom uas twb muaj lawm, cov khoom tso tawm yam tsis muaj kev rub tawm thiab cov xwm txheej ntawm cov pob khoom txhawb nqa. Cov khoom lag luam thiab kev thauj khoom uas tau teev tseg yog muab lub hauv paus ntawm qhov kev sim es tsis yog qhov khoob -axis ua qauv qhia.
Lub stacker ua tiav yog sim ua ntej tso tawm. Ntawm -kev ua tim khawv hauv qhov chaw, kev tshuaj xyuas video thiab thib peb- tog tuaj koom muaj rau qhov pom zoo lees txais.
FAQ
Q: Qhov kev txiav txim yam tsawg kawg nkaus yog dab tsi?
A: Ib lub tshuab stacking.
Q: Cov nyiaj them twg raug lees txais?
A: USD thiab EUR.
Q: Puas yog lub pallets pub dawb?
A: Yog, los ntawm pallet magazine ntawm pallet conveyor.
Q: Yuav ua li cas ntim cov hnab ntim khoom ua ntej pawg?
A: Ib qho flattening conveyor theem lub hnab ua ntej ntawm pawg.
