Precision Line rau Cov Khoom Siv Khoom Siv Khoom Siv
Wuxi Yuanding Machinery muaj ntau tshaj 30 xyoo ntawm kev ua kom txias txias. Peb tau tsim los ua Yimeng Machinery hauv 1995 thiab sau npe ua Yuanding hauv 2010. Peb lub Hoobkas nyob hauv Wuxi, npog 7,000 square meters thiab ntiav tshaj 30 tus neeg ua haujlwm txawj. Cov kab txuas txuas no yog qhov tsis siv neeg ua haujlwm tag nrho uas tsim cov kab ncaj thiab txuas cov phaj rau cov qauv silo. Peb tsim cov kab ntau lawm no kom muaj zog txaus thiab muaj tseeb. Cov neeg siv khoom tso siab rau peb rau kev ua tau zoo thiab kev pabcuam.
Cov ntaub ntawv tseem ceeb thiab cov yam ntxwv

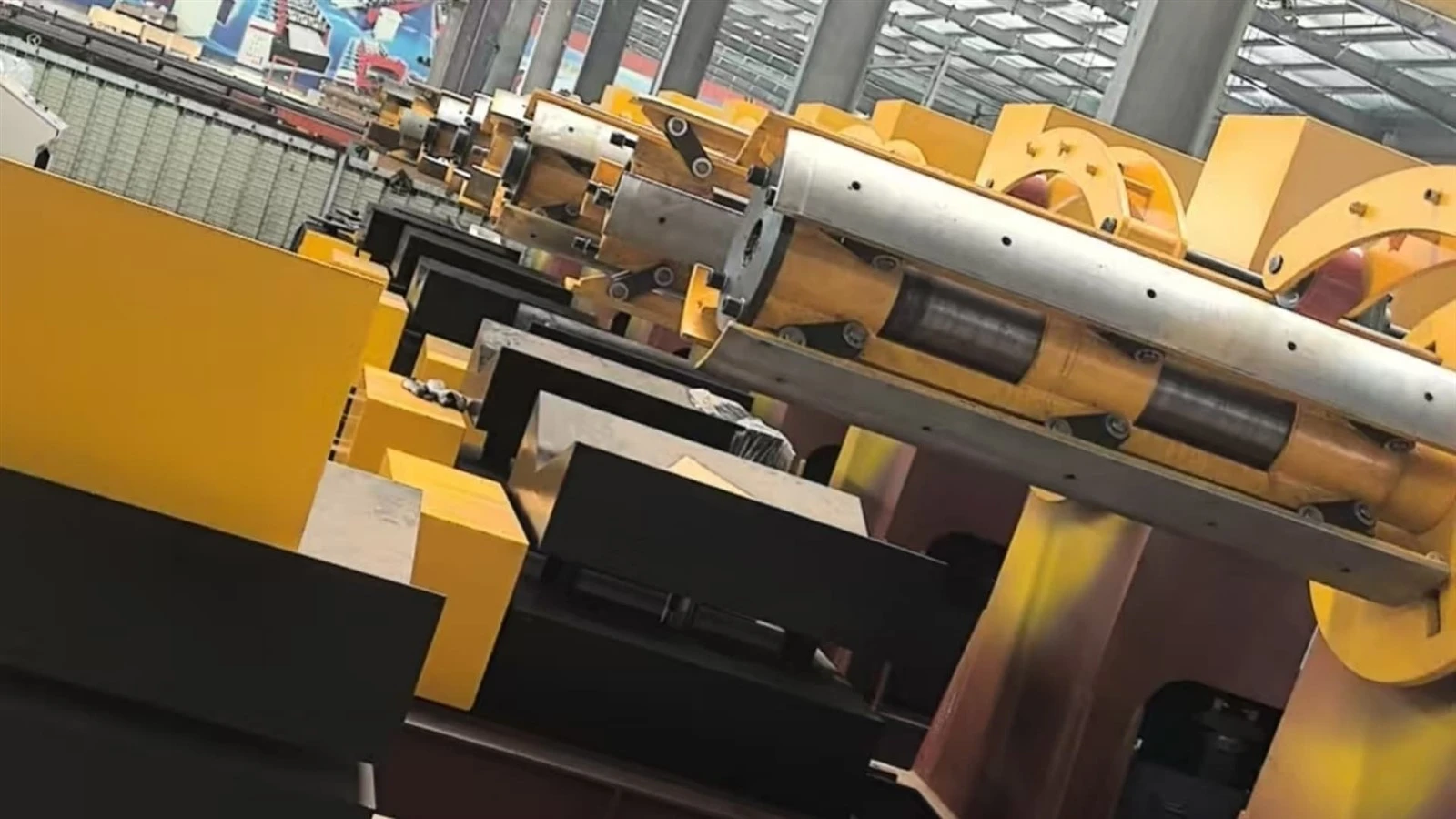

Cov kab ua haujlwm nrog servo lub cev muaj zog thiab muab kev txiav tsis siv neeg, tsis yog - nres punching, thiab yob txoj kev. Lub kaw lus suav nrog uncoiler, qib chav tsev, xuas nrig ntaus, chav tsim, thiab PLC tswj. Lub ntsiab specifications yog raws li nram no:
|
Parameter |
Paub meej |
|
Khoom siv |
Q235 galvanized steel kauj |
|
Coil Dav |
300-1500 hli |
|
Thickness |
Tsawg dua los yog sib npaug li 5 mm |
|
Txoj kev ceev |
6-15m / min |
|
Main Tsav |
2 units, 15 kW txhua |
|
Punching Tsav |
5.5 kW servo lub cev muaj zog |
|
Wave Pitch Accuracy |
± 0.2 hli |
|
Punch Position Qhov tseeb |
± 0.5 hli |
|
Tshuab Loj (L × W × H) |
Luas 30 m × 4 m × 5 m |
|
Fais fab mov |
380V / 220V, 50Hz |
|
Warranty |
1 xyoo |
Tag nrho cov khoom siv hluav taws xob tseem ceeb yog los ntawm Schneider. Cov kab kuj muaj xws li wireless handheld maub los rau kev ua haujlwm yooj yim.
Cim npe nrov: txuas phaj ntau lawm kab, Tuam Tshoj txuas phaj ntau lawm kab manufacturers, lwm tus neeg, Hoobkas
